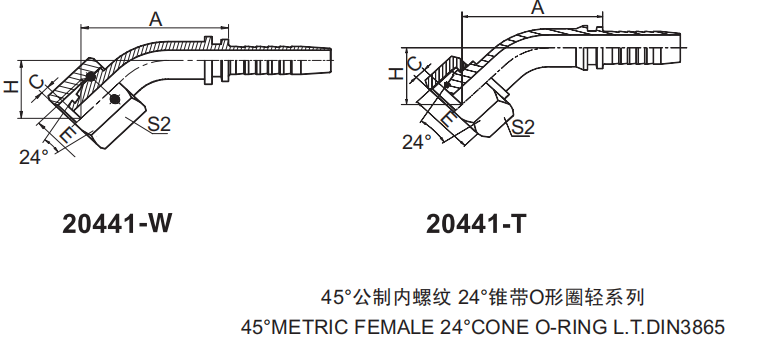

45°公制内螺纹24°锥带O型圈密封轻系列
45°Metric Female 24°Cone O-ring L.T.
| 代号 | 螺纹E | O形圈 | 软管HOSE BORE | 尺- | DIM | ENSIONS | |
| PART NO. | THREAD E | O RING | 公称内径DN | 标号DASH | A | C H | S2 |
| 20441-14-04W | M14X1.5 | O06.5X1.5 | 6 | 4 | 38.1 | 1.6 16 | 17 |
| 20441-16-04T | M16X1.5 | O08.0X1.5 | 6 | 4 | 38.1 | 2 16 | 19 |
| 20441-16-05W | M16X1.5 | O08.0X1.5 | 8 | 5 | 40.3 | 2 17 | 19 |
| 20441-16-06W | M16X1.5 | O08.0X1.5 | 10 | 6 | 40.3 | 2 17 | 19 |
| 20441-18-05T | M18X1.5 | O10.0X1.5 | 8 | 5 | 40.3 | 1.5 17 | 22 |
| 20441-18-06T | M18X1.5 | O10.0X1.5 | 10 | 6 | 45 | 1.5 18.5 | 22 |
| 20441-22-05T | M22X1.5 | O12.0X2.0 | 8 | 5 | 40.9 | 3 18 | 27 |
| 20441-22-06T | M22X1.5 | O12.0X2.0 | 10 | 6 | 42 | 3 18 | 27 |
| 20441-22-08T | M22X1.5 | O12.0X2.0 | 12 | 8 | 48.8 | 3 20 | 27 |
| 20441-26-08T | M26X1.5 | O15.0X2.0 | 12 | 8 | 47.3 | 2 21 | 32 |
| 20441-26-10T | M26X1.5 | O15.0X2.0 | 16 | 10 | 58 | 2 23.5 | 32 |
| 20441-26-12W | M26X1.5 | O15.0X2.0 | 20 | 12 | 61.4 | 2 24.6 | 32 |
| 20441-30-10T | M30X2 | O20.0X2.0 | 16 | 10 | 56.4 | 4 24.1 | 36 |
| 20441-30-12T | M30X2 | O20.0X2.0 | 20 | 12 | 63.2 | 4 25.6 | 36 |
| 20441-36-12T | M36X2 | O26.0X2.0 | 20 | 12 | 61.5 | 4.5 25.6 | 41 |
| 20441-36-14T | M36X2 | O26.0X2.0 | 22 | 14 | 67.9 | 4.5 31.6 | 41 |
| 20441-45-20T | M45X2 | O32.0X2.5 | 32 | 20 | 88.7 | 4 38 | 50 |
| 20441-52-20T | M52X2 | O38.0X2.5 | 32 | 20 | 90.3 | 4 38 | 60 |
| 20441-52-24T | M52X2 | O38.0X2.5 | 40 | 24 | 114.5 | 4 43.7 | 60 |
